Globalization and the World-wide Progress of the Covid-19 Pandemic: Early-2020 to mid-2022

Covid-19 is widely considered to be related to the recent trends in globalization. Basically, viruses can hitch a ride on people, and the things that they trade, to rapidly spread around the world. This seems entirely logical, though it is always good to examine the evidence, and see how our intuitions on these matters stand up to reality.

In order to look at this, I did some simple correlations and regressions between measures of globalization and measures of Covid-19 intensity, by country, during the duration of the pandemic, from early 2020 to mid-2022.

Globalization Measures

Globalization can mean many things to many people, so how can it be quantified and measured? It turns out that there is a lot of research on the subject and a number of globalization indices have been worked out. For this purpose I will use a series of measures created by the reputable KOF Swiss Economic Institute. Here is a brief explanation of these globalization measures, as stated on their website:

“Economic globalization is composed of trade globalization and financial globalization, of which each gets a weight of 50 percent. Social globalization consists of personal contact, information flows and cultural proximity where each contributes one third. Economic, social and political globalization are aggregated to the Globalization Index using again equal weights. The overall KOF Globalization Index is calculated as the average of the de facto and the de jure Globalization Index.”

The graphs and correlation matrix below show how well these measures interact with each other, when calculated from a database of about 200 countries (each dot in the graphs corresponds to the globalization measures for a particular country). As you can see from the graphs, these measures appear to have quite a strong linear relationships (when a country is high on one variable, it is generally high on the other). The relationships between Overall Globalization, Social Globalization and Economic Globalization are especially strong, as seen by how the points tend to fall on a more or less straight lines for the relevant graphs. Political Globalization is not as strongly related, which would seem to indicate that it is measuring a somewhat different underlying phenomenon than the others.

Relationship Between Globalization Variables

In addition, they have quite high correlation coefficients. Note that a perfect positive correlation is equal to 1.00 and a perfect negative correlation is equal to -1.00, while a correlation of 0.00 indicates no linear relationship at all. Intermediate values indicate intermediate relationships.

The table of p-values indicate how likely this result would be, based on chance alone. Low p-values mean that the result is very unlikely to be a chance occurrence. P-values of less than 0.05 are conventionally considered “low enough” to provide strong evidence of a true relationship, with numbers lower than 0.01 indicating very strong evidence.

Globalization Indices Correlations

I should note that in the following analysis of the relationship between globalization and Covid-19, the globalization indices do not change over the time period of the data being analyzed. So, they measure globalization tendencies in countries at the start of the pandemic. That said, it is likely that these measures will be consistent over time, especially when comparing countries against each other – i.e. countries that were most globalization-friendly at the start will tend to remain that way, even as the pandemic sweeps the world, while countries that were not highly globalized are unlikely to choose to become so during a pandemic.

Covid-19 Measures

There are a number of possible measures that could be used to estimate the intensity of the pandemic at different points in time. Some examples:

• Covid Infections per million population (cumulative or interval).

• Covid Cases per million population (cumulative or interval).

• Covid Deaths per million population (cumulative or interval).

• Covid Case Fatality Rate (cumulative or interval).

All of these have strengths and weaknesses. A major weakness is the reliability and accuracy of information collections between different countries and over time within countries. I will tend to focus on Covid Deaths per million population, as that seems likely have the best record-keeping (dead bodies are hard to ignore).

The Relationship between Globalization Intensity and the Covid-19 Pandemic

Below are a selection of graphs at various points in time (about six months apart), showing the Overall Globalization Index (the scale of which varies between about 30 and about 100) versus Deaths per Million population. The upper left hand corner of the graphs gives the R-square between these two measures, which can be thought of as the proportion of variance in the scatter-plot between these variables that can be explained by a linear relationship. In other words, how well do the points follow a straight line.

May 2020

• Early in the pandemic, most countries had rather low Deaths per Million Population, though a small number hit fairly high levels quite quickly.  Those tended to be the highly globalized countries, as measured by the Overall Globalization Index.


• The R-square was quite low (0.0457), indicating that not much of the variance was explained by the linear relationship (also visually obvious).



November 2020

• By autumn of 2020 the Deaths per Million Population had risen substantially in a lot of countries, though there were still many with very low death rates.

• The R-square (0.112) had risen a fair bit, so the linear relationship was now accounting for much more of the variance. Nonetheless, there is still a lot of scatter in the graph.

June 2021

• Deaths per Million Population had increased substantially (note the change in the scale of they y-axis from 0-1200, to 0-3000).

• The R-square was also substantially higher (0.280), so much more of the variance is now being explained by the linear relationship.

November 2021

• Deaths per Million Population continued to increase (note the change in the scale of they y-axis from 0-3000, to 0-6000).

• There is now one very high outlier, at nearly 6000 Deaths per Million.

• The R-square has dropped somewhat, to 0.206. This may be a seasonal effect, since at this point in time, one hemisphere will have experienced two winters, while the other has only experienced one winter. However, the differing mutational phases of the virus’s evolution may also have created this effect.

June 2022

• Deaths per Million Population have continued to increase.

• Several more countries have broken into the 4000 to 6000 Deaths per Million range.

• The R-square has gone back up (0.265), and is now nearly the same as it was in June 2020 (0.280). This would tend to support the idea that there is a seasonal effect that is responsible for the up-and-down in the R-square values.

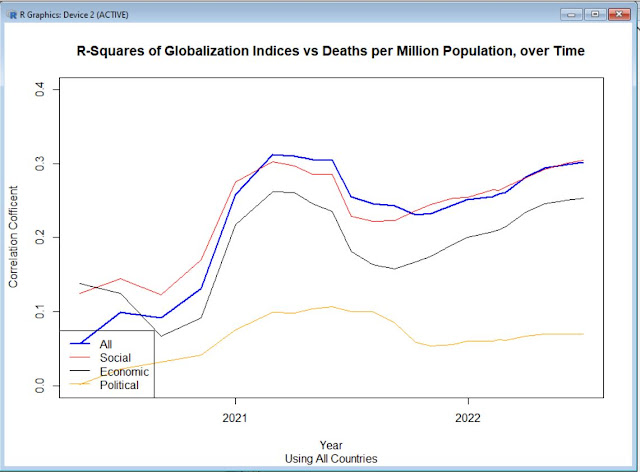

Time Trend of Correlation and R-Square, Globalization Indices vs Deaths per Million Population

Having looked at some individual point-in-time graphs of Overall Globalization vs Covid-19 Deaths per Million, we can now put these together on one graph, along with some other points-in-time. In addition, we can look at the relationship between the other globalization measures (Social, Economic, Political) and the Deaths per Million Population Measure.



• Note that the lines for each of the globalization measures show similar trends.

• For the top graph, correlation coefficients have been used, rather than R-square measures. Technically, the correlation coefficient (R) is just the square root of R-square (thus the name), so this just results in a scale effect, but the overall tendency of the graphs are similar.  The next graph gives the R-Square relationship between Globalization Measures and Covid-19 Deaths per Million Population.


• The correlation (and R-Square) between globalization and deaths begins at a relatively low level, rises to a much highly level within a year (i.e. in four seasons), then drops a bit, and finally rises to about the same level at the end of two full years as it had been at the end of one year.

• Social Globalization had the highest correlation with Deaths, followed by Economic Globalization, then finally Political Globalization at quite a bit lower level. The Overall Globalization measure (a combination of the three other measures) is not too far off the Social Globalization measure.

• So, it seems that the movement of people (Social Globalization) had the most profound effect on the spread of the pandemic, followed the movement of things (Economic Globalization). Political Globalization was not so closely tied to the pandemic, perhaps because it is a more legalistic measure and thus had less of an organic relationship with the pandemic (viruses don’t travel on treaties).




There are some other interesting globalization aspects to the Covid-19 pandemic, which I will look at in a later blog.

Some earlier Covid-19 blogs:

https://dodecahedronbooks.blogspot.com/2021/07/covid-19-cases-and-deaths-by-continent.html

https://dodecahedronbooks.blogspot.com/2021/07/covid-19-cases-by-continent-jan-2000-to.html

https://dodecahedronbooks.blogspot.com/2021/03/covid-19-vaccines-how-successfully-are.html

https://dodecahedronbooks.blogspot.com/2020/12/covid-19-vaccines-comparison-of.html

https://dodecahedronbooks.blogspot.com/2020/09/covid-19-continues-to-travel-around.html

https://dodecahedronbooks.blogspot.com/2020/07/has-covid-19-become-less-deadly.html

https://dodecahedronbooks.blogspot.com/2020/07/july-2020-update-covid-19-death-rates.html

https://dodecahedronbooks.blogspot.com/2020/05/covid-19-death-rates-correlate-highly.html

https://dodecahedronbooks.blogspot.com/2020/06/covid-19-impact-on-employment-no-impact.html

https://dodecahedronbooks.blogspot.com/2020/04/is-there-model-that-can-predict-when-to.html

https://dodecahedronbooks.blogspot.com/2020/03/estimating-fatality-rate-of-coronavirus.html

 ===================================================

And, here’s a more pleasant travel story than anticipating the worldwide journey of a virus.

A Drive Across Newfoundland

U.S.: https://www.amazon.com/dp/B07NMR9WM8

U.K.: https://www.amazon.co.uk/dp/B07NMR9WM8

Germany: https://www.amazon.de/dp/B07NMR9WM8

Japan: https://www.amazon.co.jp/dp/B07NMR9WM8

Canada: https://www.amazon.ca/dp/B07NMR9WM8

Australia: https://www.amazon.com.au/dp/B07NMR9WM8

India: https://www.amazon.in/dp/B07NMR9WM8

Newfoundland, Canada’s most easterly province, is a region that is both fascinating in its unique culture and amazing in its vistas of stark beauty. The weather is often wild, with coastal regions known for steep cliffs and crashing waves (though tranquil beaches exist too). The inland areas are primarily Precambrian shield, dominated by forests, rivers, rock formations, and abundant wildlife. The province also features some of the Earth’s most remarkable geology, notably The Tablelands, where the mantle rocks of the Earth’s interior have been exposed at the surface, permitting one to explore an almost alien landscape, an opportunity available on only a few scattered regions of the planet.

The city of St. John’s is one of Canada’s most unique urban areas, with a population that maintains many old traditions and cultural aspects of the British Isles. That’s true of the rest of the province, as well, where the people are friendly and inclined to chat amiably with visitors. Plus, they talk with amusing accents and party hard, so what’s not to like?

This account focusses on a two-week road trip in October 2007, from St. John’s in the southeast, to L’Anse aux Meadows in the far northwest, the only known Viking settlement in North America. It also features a day hike visit to The Tablelands, a remarkable and majestic geological feature. Even those who don’t normally consider themselves very interested in geology will find themselves awe-struck by these other-worldly landscapes.

On the Road with Bronco Billy

Spring is on us now, and that brings on thoughts of ROAD TRIP. Sure, it is still a bit early, but you can still start making plans for your next road trip with help of “On the Road with Bronco Billy”. Sit back and go on a ten day trucking trip in a big rig, through western North America, from Alberta to Texas, and back again. Explore the countryside, learn some trucking lingo, and observe the shifting cultural norms across this great continent. Then, come spring, try it out for yourself.

Amazon U.S.: http://www.amazon.com/gp/product/B00X2IRHSK

Amazon U.K.: http://www.amazon.co.uk/gp/product/B00X2IRHSK

Amazon Germany: http://www.amazon.de/gp/product/B00X2IRHSK

Amazon Canada: http://www.amazon.ca/gp/product/B00X2IRHSK

Mining Lithium from Spent Oil Wells – Imperial Oil Dives into the Briny Alberta Waters

Mining Lithium from Spent Oil Wells – Imperial Oil Dives into the Briny Alberta Waters

The Globe and Mail Report on Business had a story on June 24, 2022 outlining the investment of about 6 million dollars to join a pilot project for extracting lithium from a major oil formation, once prolific but now largely depleted. That would be the Leduc formation, which was the oil-rich geologic formation in central Alberta that kicked off the oil boom in that part of western Canada. It was discovered by Imperial Oil in 1947, so they have a lot of corporate knowledge of the geology of this formation in their archives. It is worth noting that Imperial Oil is Calgary based, but is nearly 70% owned by Exxon.

The hope is that the formation will have lithium rich brine that can be used in batteries and other items essential to electrification plans around the world (see the details of an earlier blog below, which explains the science behind lithium brines and old oil wells). The oil major is partnering with a company called E3 Lithium Ltd, which has plans to spend over $600 million on a lithium extraction project near Olds, Alberta (between Calgary and Edmonton). This area is known as the Clearwater region, but the Leduc Formation has a couple of other areas that have good prospects for lithium, called Rocky and Exshaw.

E3 Lithium claims to have developed some innovative technology to extract the lithium from the brine. They also say that they will incorporate renewable energy and carbon capture, to supply the energy needed for the lithium extraction process. They hope to produce 20,000 tons of lithium hydroxiide per year, beginning in 2026. They also have plans to refine that to battery-grade lithium.

As an example of lithium needs at a practical level, a Tesla auto battery uses about 60 kilograms of lithium. So, in principle, a year’s production from this plant could provide enough lithium for about 330,000 Tesla cars. So, there is probably plenty of scope for expansion.

P.S. I have no personal stake in this project, other than scientific curiosity.

Mining Lithium from Spent Oil Wells – A Talk by University of Alberta Geology Professor Daniel Allesi

Introduction

In order to get to net zero emissions (or even to approach that goal), a great deal of energy storage will be required. That’s especially true in areas like Canada, which have long periods with little sunlight, thus making solar power infeasible for much of the year, unless ample electrical storage is available. Lithium is one of the materials that is needed for electric storage, so lithium is a strategic resource of great importance, one that is currently not that widely accessible in most of the world.

This talk about extracting lithium from brines associated with spent oil wells in Alberta, Canada was delivered by Dr. Daniel Allesi of the Department of Earth and Atmospheric Sciences at the university of Alberta, a specialist in geochemistry and geomicrobiology. It dealt with his team’s research into the development of processes to extract lithium a commercial scale and prices competitive with current supplies. The official name of the talk was “Electric Potential; Extracting Lithium from Waste in Alberta”.

Lithium Demand



• Huge growth in demand is expected for lithium, especially for use in Lithium-ion batteries. Lithium is basically used in all parts of these batteries, the anode, cathode and solution.

• A 9X increase in demand is expected by 2030.

• But supply is having trouble keeping up, so a shortage is expected soon, by about 2025.

• Thus, many more sources of supply are needed, both conventional and unconventional.

• One of those unconventional sources could be brine from the Duveney Formation, an oil-bearing rock formation in Alberta.

• This brine is very salty, about 5X more than sea water (at about 136K ppm).

• However it also does contain a fairly decent amount of Lithium, averaging at about 55 ppm.

• Some cobalt, another strategic metal is also present, though at low concentrations.




Conventional Lithium Sources

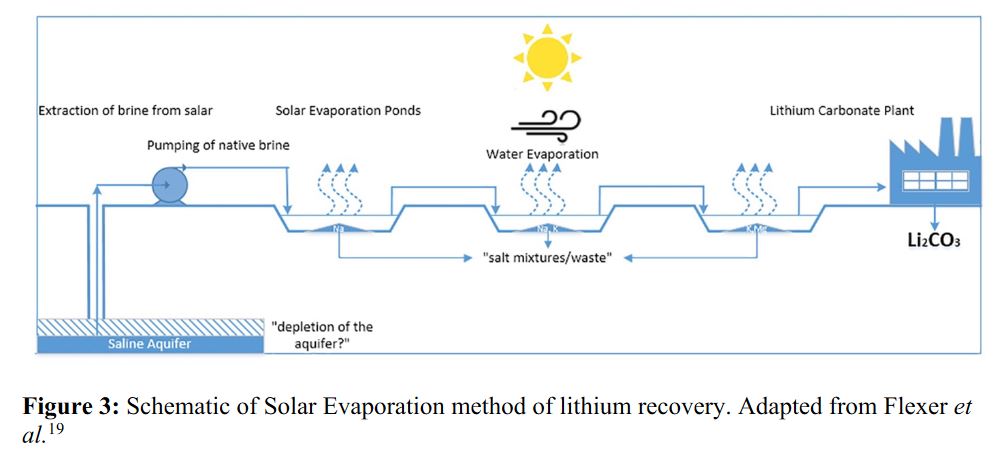

• Currently, one of the main conventional source of supply are salt flats, which contain Li2CO3.

  • Solar evaporation is used to concentrate brine that has been collected in evaporation ponds. This results in a lithium precipitate, with a recovery rate of 50-60% of the lithium in the brine.

  • However, there are considerable environment impacts from this process. It uses a lot of water, in regions that are scarce in water. That water then becomes contaminated.

  • It also takes years to months for the necessary evaporation to occur and requires a lot of sunshine. These conditions are not that common (The dry high desert area of Chile is a current main source).

• Hard rock, open pit mining (granite pegmatite) is another conventional source of supply. This can produce both Li2CO3 and LiOH. There are various such mines around the world, either working or in development (e.g. Africa, Australia, U.S., Quebec, there is a possibility of an Alberta mine as well).

Alberta Lithium Potential

• Alberta has many millions of tons of Lithium Carbonate bran, in underground sources.

• Though these are relatively low grade sources compared to a lot of current conventional supplies, they are abundant.

• One estimate is 10 million tons at $25 thousand dollars per ton, so there is potentially lots of money to be made. Some brines have high grades, up to 140 ppm.

• They tend to be found in areas that have had extensive oil and gas production. Therefore, costs can be reduced as much of the infrastructure needed already exists (i.e. from the oil/gas exploration and development).

• Lithium in these brines is thought to be driven by hydro-thermal volcanic activity, deep underground.





Lithium Extraction Technology for Alberta Brine

• There are many options for lithium extraction, such as the use of solvents, membranes, electrolysis or selective absorption.

• The basic process can be thought of in these stages:

  • Drill and collect brine from underground source.

  • Use direct lithium extraction process (ion exchange) to remove lithium from the brine.

  • Re-inject the lithium-depleted brine back underground.

  • Do some cleanup, then precipitate solid lithium from the concentrate.

• Some technical details (very simplified)

  • Metal beads (the sorbent) are used to adsorb lithium ions from the brine. These are manganese (III) and manganese (IV).

  • The metals are dipped into the brine.

  • Essentially, lithium ions are adsorbed by being selected into small regions in the metal’s crystalline structure. That is due to its small size (lithium is only the third element in the periodic table).

  • This loads the metal beads with lithium.

  • The metal beads (sorbent) are then rinsed in a solution to extract the lithium from the sorbent, resulting in a highly concentrated brine.

  • Solid lithium is then precipitated out in ponds.

  • The sorbent is then dried out for re-use, to start the cycle over again.

• The process can be quick, on the scale of hours rather than months.

• It can recover 80%+ of the lithium, though there are also some other products produced by the process.

• Some technical/commercial issues to be worked out.

  • The big problem is the need to recycle and reuse the sorbent for the economics to be competitive (sorbent is expensive).

  • But, manganese is lost during the process, which is a problem as it is a key part of the sorbent.

  • Though the brine is from a “free site” (a site previously used for oil and thus has ready-built infrastructure) this creates a problem. The brine is often contaminated with hydrocarbons and other unwanted substances.

  • This coating of the sorbent with these oils may be part of the problem that leads to the loss of sorbent.

• This is the professor’s major area of research (i.e. the need to be able to reuse the sorbent).

  • For commercialization, the sorbent loss rate must be kept low, perhaps only 1% or so for each cycle of the process.

  • Basically, there is a need to “clean up” the brine in order to save the sorbent. This is especially true for organics in the brine.

  • One idea is to centrifuge the brine, to separate out the contaminants before mixing with the sorbent.

  • Washing with a surfactant (soap, basically) may help also help in the quest to maintain and reuse the sorbent.

  • Use of chlorine, peroxide or filtration (ultra fine, nano-level) are some possible approaches. But filters are expensive.

  • Coating the sorbent with something like zirconium might help to protect the manganese from reduction, so less loss of useful sorbent.

• H2S can also be a problem, by reducing Mn(IV) to Mn(III) or Mn(II), which are less useful sorbents. So that may need to be scrubbed.

Commercialization

• Problems have been solved in the lab, but can the process be done at a commercial, industrial scale? Research on this is ongoing.

• Using petrol-brine at a rate of 10K cubic meters per day, with a concentration of 80 ppm can yield 1500 tons of lithium per year.

• At current prices, that is feasible, but prices are high right now, so the economics might not work at lower prices.

• Economic incentives (e.g. tax breaks, subsidies) would be helpful (naturally).

• One advantage in favour of the process, is that the money earned via this method could offset oil industry water storage costs, so complete cost recovery may not be necessary (though always preferable).

• Another advantages is that a skilled workforce already exists in Alberta (oil/gas workers are already familiar with a lot of aspects of the overall process). Some incentives for re-training would also be useful.

• Ultimately, the greatest benefit would come from producing batteries from the lithium, rather than exporting it for others to do.

  World Lithium Sources (excluding Alberta lithium brine in old oil wells)






Sources:

The talk “Electric Potential; Extracting Lithium from Waste in Alberta”. By University of Alberta Talk by Professor Daniel Allesi

Alberta Brine Map and diagram: Eccles, D.R.; Berhane, H. Geological introduction to lithium-rich formation water withemphasis on the Fox Creek area of west-central Alberta (NTS 83F and 83K); Energy Resources Conservation Board, Edmonton, AB, 2011; pp 1-17.

Lithium Recovery from Hydraulic Fracturing Flowback and
Produced Water using a Manganese-Based Sorbent (Masters thesis byAdam John Seip

Wiki



==========================================================
